MSA 506222 Split-Mount Pulley For Dynevac And Dyna-Hoist
MSA Split Mount Pulley Dynevac Dyna Hoist 506222

$115.75 Each


Product Code: MSA506222
Qty:

Features

Features
Rescue System

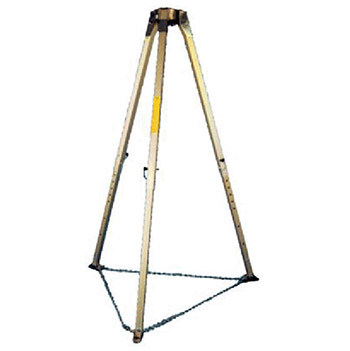

A. Portable Tripod
With a static vertical load strength of 5,000 lbs., the Portable Rose Tripod provides a suitable anchorage connector for attachment of personnel and material handling equipment. Lightweight with a fast set-up and take-down design. Legs offer incremental adjustment, skid resistant feet and automatic leg locks and come with a base chain for stability on slick or uneven surfaces. Corrosion resistant finish. Tripod stands 55" high and is extendable to 91". Exceeds ANSI and OSHA requirements.
B. Dynevac()Retractable Lifeline with Emergency Rescuer
Provides fall arrest within inches and reduces fall arrest to under 900 lbf. Quick operation of rescue mode engages steel gears for lifting/lowering. Features fast rescue lifting with low lifting effort, approximately 25' per minute. Load is securely held when crank handle is released.
C. Dynevac()Bracket
Bracket for mounting Dynevac to Tripod leg.
D. Split-Mount Pulley for Dynevac()

The Split-Mount Pulley can be used with the Tripod or remotely anchored to a suitable anchorage point.
E. Side-Mount Dyna-Hoist for Personnel and Materials
The Dyna-Hoist system is designed for lifting, lowering and positioning of personnel and materials with a maximum load of 310 lbs. for personnel (10:1 safety design factor) and 620 lbs. for materials (5:1 safety design factor). All steel construction with an internal shock absorption mechanism that operates even when usable length of line is extracted. Line is 50' of 3/16" galvanized rope.

F. Pulley with Bracket for Dyna-Hoist System
Pulley with bracket for use with Dyna-Hoist unit when mounted on a tripod.
